What is point cloud to BIM conversion?

Point cloud to BIM conversion also called scan to BIM is the process of transforming raw 3D laser scan data into intelligent, parametric building information models in Autodesk Revit. The result is a data-rich as-built BIM model that accurately represents existing building conditions, capturing every wall, column, beam, floor, duct, pipe, and structural element with geometric precision.

For surveyors, architects, and AEC firms, this workflow eliminates the guesswork of traditional measured surveys, replacing manual measurements with millimetre-accurate scan data that feeds directly into Revit at LOD 100 through LOD 500.

What you need before starting a point cloud to BIM project

Before converting point cloud data to a BIM model, confirm these inputs are in place:

1. Registered point cloud file: E57, RCP, RCS, PTS, LAS, or FLS format from your scanner or scanning firm, fully registered and cleaned of noise artefacts.

2. Defined LOD level: agree with the client whether LOD 200, LOD 300, LOD 400, or LOD 500 is required before modeling begins. LOD determines the geometric detail, information content, and time investment of the model.

3. Discipline scope: confirm whether the model covers architectural elements only, or includes structural and MEP systems.

4. Revit template and coordinate system: establish the project base point and shared coordinate system before importing scan data to ensure the model aligns with site coordinates.

5. Deliverable format agreement: agree what files will be delivered: RVT model, IFC export, 2D DWG drawings, PDFs, or COBie data for facility management.

Step-by-step: how to convert point cloud data to a Revit BIM model

Step 1: Import and register the point cloud in Autodesk ReCap Pro

Open Autodesk ReCap Pro and import your raw scan files (E57, PTS, FLS, LAS). If multiple scan positions were captured on site, register them together into a single unified point cloud using ReCap's registration workflow or Leica Cyclone Register 360 / FARO Scene. Registration aligns all scan positions into one coordinate system. Once registered, clean the point cloud by removing noise points, scanner artefacts, and unwanted objects (people, vehicles, temporary equipment). Export as an RCP project file for import into Revit.

Step 2: Import the point cloud into Autodesk Revit

In Revit, go to Insert tab → Link Point Cloud → select your RCP or RCS file. The point cloud loads as a linked file and renders as a 3D cloud of coloured scan points. Adjust the point cloud display settings use Normals or Intensity colour mode for best visibility of building elements. Navigate to your working floor plan view or 3D section box to isolate the zone you are modeling. Use the Revit section box to clip the point cloud to a single storey or building zone before beginning element tracing.

Step 3: Set up the Revit model structure and LOD

Before tracing begins, configure your Revit project template: set project units (millimetres for UK/Australia, feet for USA), establish levels at each floor height visible in the scan data, and confirm the grid system. For LOD 300 models, walls and slabs are modeled as Revit wall, floor, and roof families with accurate dimensions. For LOD 400, connections, fixings, and fabrication details are added. For LOD 500, the model is verified against the scan after completion and marked as as-built.

Step 4: Trace building elements over the point cloud

This is the core modeling phase. Working in plan, elevation, and section views with the point cloud visible, the BIM modeler traces each building element:

1. Walls: trace wall centrelines from the scan point density. Set the correct wall type, thickness, and height from the point cloud geometry.

2. Floors and slabs: sketch floor boundaries from the scan at each level. Set the slab thickness from the structural scan data.

3. Columns and beams: place structural families at the scan positions. Match the cross-section size (UB, UC, RHS, or concrete) visible in the scan.

4. Doors and windows: identify openings in the scan. Place door and window families matching the revealed dimensions.

5. MEP systems (if in scope): trace duct centrelines, pipe runs, and equipment footprints from the scan density. Size ducts and pipes from the point cloud geometry.

6. Stairs, ramps and features: model from scan cross-sections showing tread depth, riser height, and handrail positions.

Maintain ±5mm to ±10mm tolerance throughout by checking dimensions from the scan at regular intervals during modeling.

Step 5: Quality check the model against the point cloud

Once element tracing is complete, run a systematic quality check by overlaying the finished Revit model on the point cloud in a 3D view. Check that modeled walls sit correctly within the scan point density, that floor levels match the scan elevation data, and that openings align with the scan geometry. For MEP models, run a Navisworks clash detection check between architectural, structural, and MEP models to confirm the model is clash-free before delivery. Document any areas where scan coverage was insufficient for accurate modeling and flag these to the client.

Step 6: Export deliverables and archive the model

Generate the agreed deliverable package from the completed Revit model:

1. Revit model (.RVT) the primary deliverable

2. IFC export (.IFC) for open BIM workflows and software-agnostic coordination

3. 2D drawings (.DWG, .PDF) floor plans, elevations, sections, and reflected ceiling plans generated from Revit views

4. Navisworks file (.NWC) for clash coordination if required

5. COBie export for LOD 500 facility management models

Archive the registered RCP point cloud file alongside the Revit model for future reference. The point cloud is the source of record and may be needed if additional elements require modeling later.

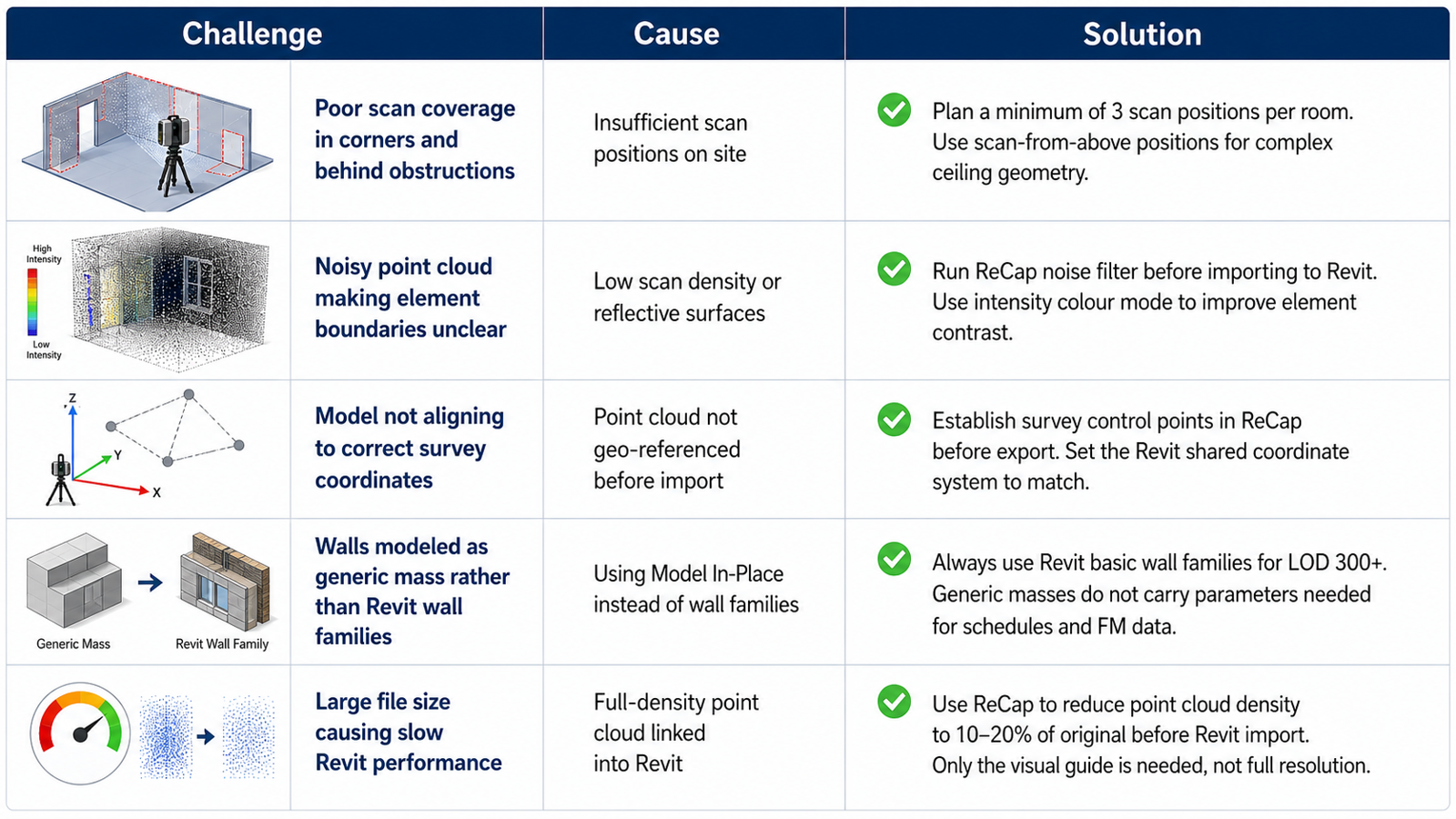

Common challenges in point cloud to BIM conversion and how to avoid them

Should you do point cloud to BIM modeling in-house or outsource it?

The decision to model in-house or outsource your point cloud to BIM modeling work depends on the volume of projects, your team's Revit expertise, and the LOD required. Many surveying firms and laser scanning companies that capture scan data in-house choose to outsource the BIM modeling phase to a specialist team. This approach delivers three clear advantages:

1. Cost: outsourced scan to BIM modeling typically costs 30–40% less than equivalent in-house Revit staffing, accounting for salary, software licenses, and training overhead.

2. Turnaround: a dedicated outsourcing team with large-format project experience delivers 5–15 business day turnarounds that most in-house teams cannot match alongside live project demands.

3. Expertise: specialist scan to BIM teams model LOD 300–500 daily. The accuracy and modeling quality is typically higher than general-purpose BIM teams modeling from point clouds occasionally.

Frequently asked questions

How long does point cloud to BIM conversion take?
Typical turnaround for a single commercial building at LOD 300 is 5–15 business days. Timeline depends on building size (GFA), number of storeys, discipline scope, and scan quality. Expedited delivery is available for urgent projects.

What accuracy can I expect from a point cloud to BIM model?
A properly executed scan to BIM model delivers ±5mm to ±10mm geometric accuracy, verified against the source point cloud. The accuracy of the model is ultimately limited by the quality and density of the original scan data higher-density scans yield more accurate models.

What file formats do I need to provide for scan to BIM conversion?
Submit your scan data in any of these formats: E57 (universal), RCP or RCS (Autodesk ReCap), PTS or PTX (Leica), FLS or FWS (FARO), LAS or LAZ (drone/aerial), or XYZ (generic). No pre-processing is required raw scan files are accepted directly.
